Apollo ultra-widefield color CSLO
The best combination of ultra-wide field and confocal retina images
IMAGING MODALITIES
- Infrared 785 nm
- Blue Redfree 488nm
- Green Redfree 520nm
- Green AF 520nm
- Blue AF 488nm
165° ONE SHOT AND
UP TO 240° IN TWO SHOTS
Capture two to six photos and combine in a panorama view easily thanks to the fast assisted joystick control
OPTICAL ZOOM 165° – 135° – 90° – 45° WITHOUT CHANGING LENS
One click switch Field of View to zoom into areas of interest
STRONG PENETRATION:
CATARACT FREE
Strong Confocal design allows to separate better the retina layers and to penetrate stronger through cataract and eye opacities.
UNLIMITED OFFLINE AI RETINA
ASSISTANT INCLUDED
Ready to use AI assistant with 19 pathologies detection to support your decisions
PUPIL SIZE 2.0MM
Optimal photos even on really small pupils resulting on higher success rate of gradable images
CELLS AND BLOOD FLOW
TOOLS OPTION
Ready to use AI assistant with 19 pathologies detection to support your decisions

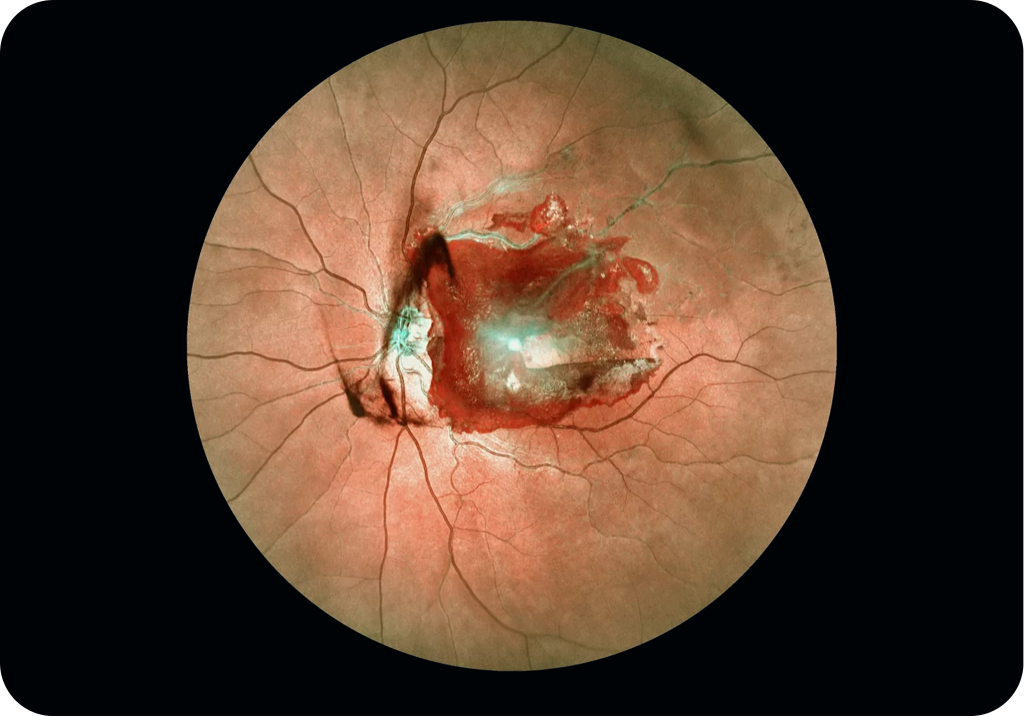

Ultra-widefield shots with confidence

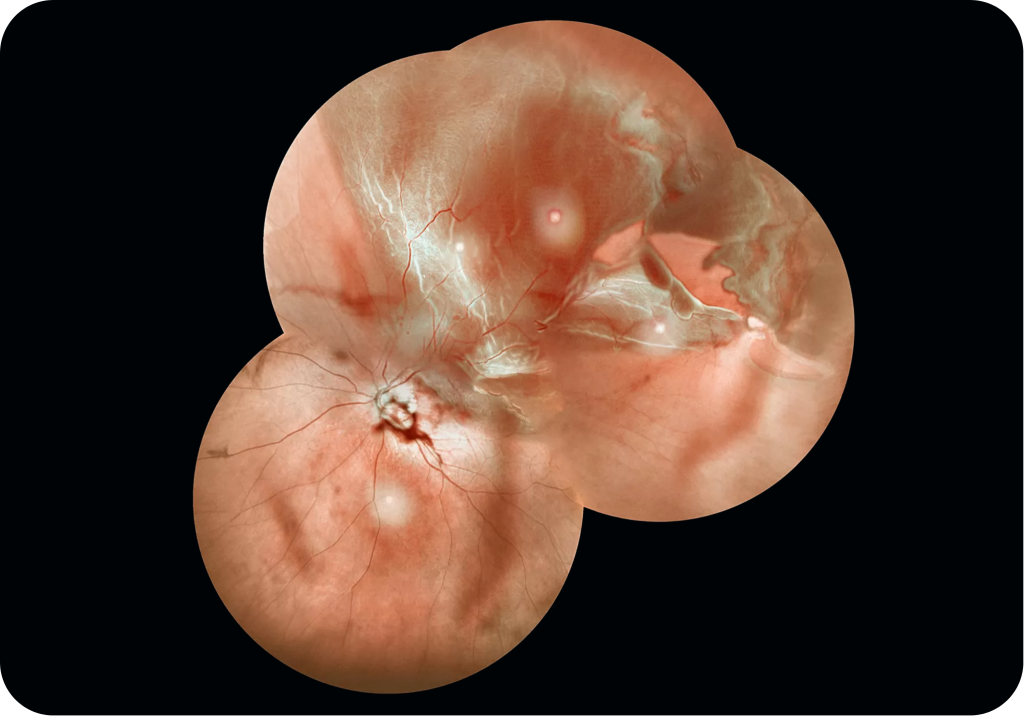

Our laser retinal imaging can easy and fast obtain 150° Infrared, Redfree and Col our
retinal photos, and create panorama views up to 240°.
The Strong Confocal optical design delivers a high success rate of gradable images
even with small pupils and adverse light situations.
Capture high-quality photos even on difficult cases
Strong Confocality is derived from the Scanning Laser Technology and allows it to penetrate easily through cataract and eye opacities and to take images even on
pupil size of 1.5mm and under unfavorable light conditions.
APOLLO CSLO SPECIFICATIONS
IMAGING MODALITIES
Infrared 785 nm
Blue Redfree 488nm
Green Redfree 520nm
Green AF 520nm
Blue AF 488nm
IMAGING MODALITIES
Infrared 785 nm
Blue Redfree 488nm
Green Redfree 520nm
Green AF 520nm
Blue AF 488nm
AUTOMATIC MONTAGE
up to 240° mosaic
2 to 9 images
NON MYDRIATIC
Minimum pupil 2.0mm
RESOLUTION
5 microns
FIXATION TARGETS
internal 1 central and 8 peripheral
fixation targets extaernal
flexible target
DIOPTER COMPENSATION
-35D- +50D/-20-+20(EU)
SOFTWARE INCLUDED
Patient management
retina review and annotation
multiple review stations
DICOM compatible
AI INCLUDED
20 pathologies
offline, no internet
requried unlimited license use
HARDWARE INCLUDED
PC computer
Monitor
Table
(printer)
DIMENSIONS AND POWER
Size 600mm x 440mm x 1120mm
Weight: 130 kg
Voltage: AC100-220V
Power consumption: max 200VA
