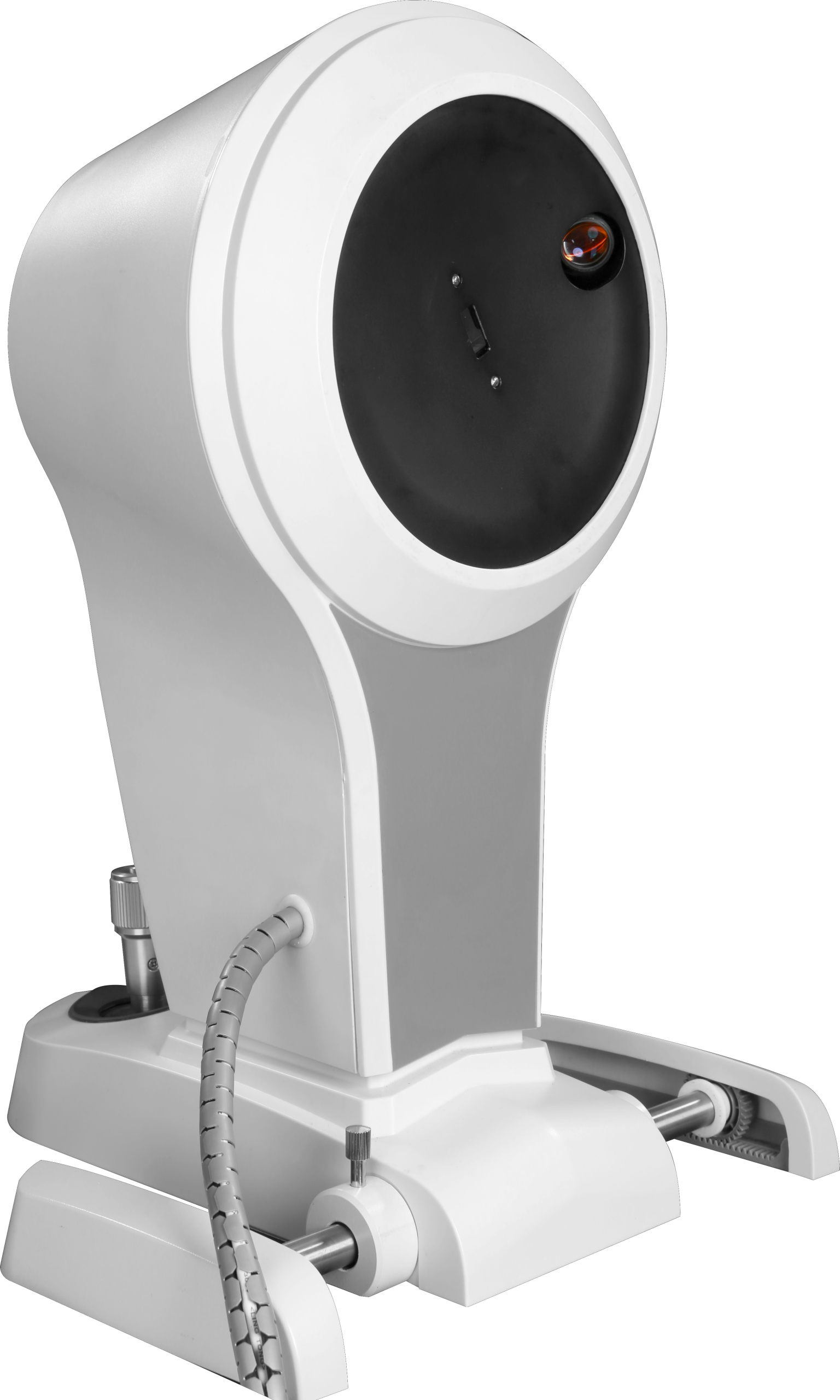

Scansys TA517 Anterior Segment Analyzer

Category:

Anterior Segment Analyzer

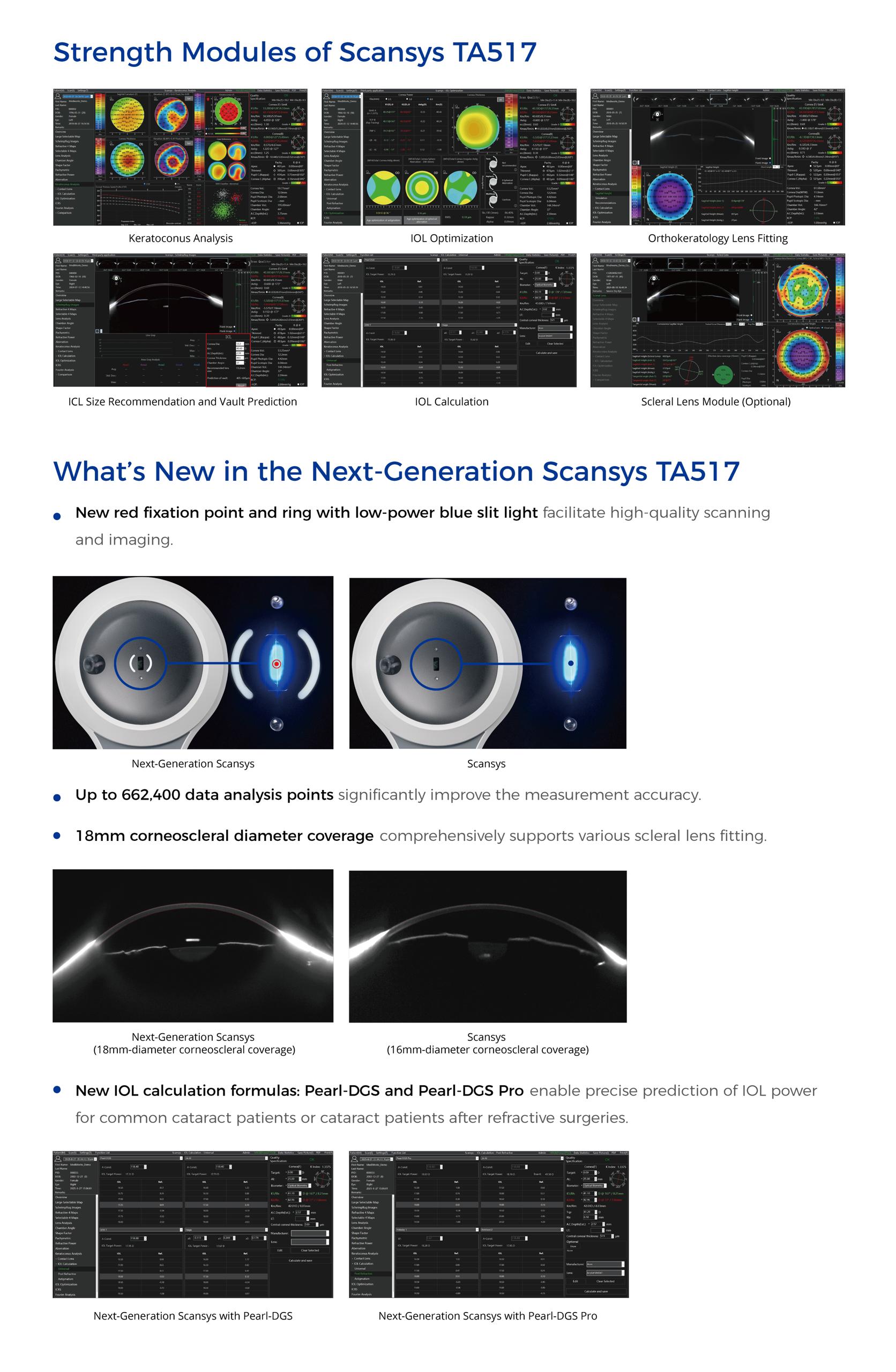

Scansys provides a professional solution for anterior segment diagnosis. It applies Scheimpflug camera which can collect 107520 / 230400 data points and generates 28 / 60 cornea tomography images in high resolution. Scansys can provide a series of topographic maps including cornea curvature maps, cornea thickness maps, cornea elevation maps, etc.

Clinical Application

◉Keratoconus Diagnosis
Scansys can provide the prevalence of Keratoconus by using the AI algorithm, Further checking the topographic maps to accurately analyze and diagnose the keratoconus.

◉ICL Surgery Examination
Scansys supports to collect a high-resolution Scheimpflug images in different angles. It also provides White to White, AC depth for ICL surgery.
Artificial intelligence recommends the diameter of the ICL and gives the prediction of postoperative vault.

◉IOL Optimization
Specially designed for cataract surgery. It supports clinicians to choose suitable Toric IOL, Aspheric IOL or Multifocal IOL for patients.

◉Aberration Analysis
Total cornea aberration guides surgeons to evaluate preoperative and postoperative visual quality to ensure the best surgery effect for patients.


Keratoconus Analysis (2)_看图王.jpg

Keratoconus Analysis

Keratoconus analysis module gives the KCI index , AI reference, SVM classifier, keratoconus possibility(KCP), refractive 4 maps, corneal thickness spatial profile (CTSP), percentage thickness increase (PTI) and so on to help doctors quickly and intelligently screen keratoconus.

20240517 TA 517 Scansys Anterior Segment Analyzer-16.jpg

KCI index:

abnormal protrusion index of anterior and posterior corneal surface.
◆ Color in green indicates the cornea is normal.
◆ Color in yellow indicates a suspicious abnormal protrusion of the cornea.
◆ Color in red indicates an abnormal protrusion of the cornea.

20240517 TA 517 Scansys Anterior Segment Analyzer-15.jpg

AI reference:

AI reference introduces AI algorithms to more intelligently screen keratoconus.

20240517 TA 517 Scansys Anterior Segment Analyzer-14.jpg

SVM classifier:

After learning the characteristic points of different cases,
Scansys classifies the current cases.

20240517 TA 517 Scansys Anterior Segment Analyzer-13.jpg

Keratoconus possibility(KCP):

Values are distributed between 0-100%, the larger the value, the greater the probability of keratoconus. The unique KCP parameter is used to intuitively judge the possibility of keratoconus.

20240517 TA 517 Scansys Anterior Segment Analyzer-15.jpg

Refractive 4 maps:

Sagittal Curvature (Front), Corneal Thickness, Elevation (Front), Elevation (Back)
It’s a key reference for specifically diagnosing the keratoconus.

20240517 TA 517 Scansys Anterior Segment Analyzer-14.jpg

Corneal Thickness Spatial Profile (CTSP) & Percentage Thickness Increase (PTI):

The trend distribution of the corneal thickness.

20240517 TA 517 Scansys Anterior Segment Analyzer-13.jpg

Binocular contrast:

It is efficient for the early detection of keratoconus and corneal ectasia and improves the sensitivity and specificity of early keratoconus and ectasia screening.

Abberation (2)_看图王.jpg

Aberration & Simulation

This module analyzes the aberrations of the anterior surface, posterior surface of the cornea and the total cornea through the zernike polynomial and provides accurate information for optical correction through retinal image, point spread function, modulation transfer function, which has guiding significance for the visual quality analysis before and after refractive surgery.

Refractive Power (2)_看图王.jpg

Refractive Power

In the key parameter column on the right, we give K1, K2, Km, Astig. These values are obtained in the range of 3mm in diameter of the membrane. In order to describe in more detail the difference of these values in each diameter range, We give K1, K2, Km, Astig of the axial curvature of the anterior and posterior cornea, anterior surface refractive power, true net refractive power, full corneal refractive power topographic map, the distribution table of various areas from 2mm to 9mm in diameter and the distribution curve .The changes in these values in different topographic maps and different diameter ranges are described more intuitively and in detail.

IOL Optimization (2)_看图王.jpg

IOL Optimization

Specially designed for the “IOL Optimization”of refractive cataract surgery. Given the K1, K2, Km, and Astig values of the three types of corneal refractive power (Simk, total corneal power, true net refractive power), and Kappa & Alpha angle, respectively. It also provides professional data of the total corneal astigmatism aberration, total corneal spherical aberration and the total corneal irregular astigmatism,and analysis support for solving spherical refractive errors, astigmatism, spherical aberration, and presbyopia in cataract surgery.

Shape Factor (2)_看图王.jpg

Shape Factor

The chart upper depicts the corneal form factor and the curvature of the anterior and posterior surface of the cornea at the intersection of the radial axis and the four radial directions.
Corneal shape factors include Ecc, E, Q, and P, which can be changed in the “Map and Data Settings” -> “Form Factor Presentation” in the menu bar “Settings” options.

ICL (2)_看图王.jpg

ICL Surgery Examination


↑Preoperative diagnosis & Postoperative arch evaluation
←Postoperative arch measurement

Scansys supports in any Angle to collect a high-definition picture, to provide effective data support for ICL surgery.

AI intelligence recommends the diameter of the ICL and gives elevation of the arch.

Lens Analysis (2)_看图王.jpg

Lens Analysis

Scansys calculates the lens density value for cross section and longitudinal section which is helpful in cataract diagnosis.

Contact Lens Simulation (2)_看图王.jpg

Lens Fitting

A simulated fluorescein image will be created based on the patient’s topographic maps generated by Scansys. This will accelerate the work flow of lens fitting and save the trouble for patient to accept multiple real fluorescein staining during lens fitting.

VST 小图_看图王.jpg

VST-Four arcs and above design
Input R value, W value and K value of each arc of VST lens.

CRT 小图_看图王.jpg

CRT-Three arcs design Input sphere
Scansys and manufacturer recommendations.

20240517 TA 517 Scansys Anterior Segment Analyzer-18.jpg

Chamber Angle Analysis

Scansys can calculate a chamber angle value based on the tomography images and its exclusive AOD graph gives a trend analysis for the distance between cornea back surface to iris. It also provides cornea volume, anterior chamber volume and anterior chamber depth calculation. These analyses are used for quickly screening glaucoma.

ICRS (2)_看图王.jpg

ICRS

Making a stromal tunnel is the first step in intrastromal corneal ring segments (ICRS) implantation. Based on the patient’s corneal morphology, several parameters required to make the stromal tunnel with conventional mechanical (Manual dissection) and femtosecond laser (Femtosecond laser dissection) are provided separately, reducing postoperative complications and improving the predictability of the surgery.

ICRS 小图1_看图王.jpg

Manual dissection



ICRS 小图2_看图王.jpg

+

Femtosecond laser dissection

Technical Specification

Camera Digital infrared camera + Scheimpflug digital CCD camera
Light Source LED slit
Scanning Speed 28 images within 1 second/ 60 images within 2 second/ single image
Data Points 107520 / 230400
Work distance 80 mm
Corneal topography 9 mm / 12 mm
Corneal thickness 300 ~ 900 μm
Anterior chamber depth 0.8 ~ 6 mm
Diopter 12 ~ 72 D
White to white 6 ~ 14 mm
Pupil diameter 1 ~ 10 mm
Anterior chamber volume 15 ~ 300 mm³
Chamber angle 16 ~ 60 °
Kappa/Alpha R( 0 ~ 3 mm) θ( 0 ~ 360° )

Work Range
Front and back 115 mm
Left and right 100 mm
Up and down 30 mm

Power Supply
Input voltage ~100 V ~ 240 V
Input frequency 50 Hz / 60 Hz

Weight and Size
Device dimension 505 mm x 345 mm x 460 mm ( L/W/H )
Device weight 12 kg
Package dimension 700 mm x 600 mm x 830 mm ( L/W/H )
Package weigh 25 kg

System Specifications
PC configuration i5 ~ 10500T 8GB memory 256GB SSD + 1TB storage
Display 1920 × 1080 23.8 inch
