Introducing TIA™ Superfast
Modern and innovative platform provides clinicians with a full suite of bespoke visual field testing strategies and protocols which improves practice workflow and enhances patient comfort while reducing clinic waiting times.
Patient audio guide
Intuitive and easy to follow automated verbal instructions and commands are available at the preparation stage and during testing. Clinicians can option automated verbal instructions or chose to guide the patient personally.
Easy to setup
World class design, clinician and patient interface. Unparalleled ergonomic clinician interface delivers a faster and easier visual field testing experience than ever before!
Near Vision Test
Refractive blur produces depression of the hill of vision. With embedded Near Vision Test clinicians can automatically verify patient’s refractive correction.
17” HD Capacitive Touch Screen
Versatility and control at the hands of the clinician in selecting patient’s name, editing patient data, commence testing and reviewing examination results with highly responsive 17” touch screen.
Position sensor
Forehead sensors continuously confirms optimal patient positioning. Clinicians are immediately notified of unexpected patient movement allowing the clinician to rapidly respond and reposition patient.
Optimized clinician workflow
Frey has successfully created an unparalleled level of integration between the AP-600 hardware and software, resulting in streamlined, highly optimized user interface to improve clinician workflow.
Compact design
Slim silhouette saves space. Engineered to perfection. Compact design is the flagship feature of the AP-600 Automated Perimeter.
| AP-600 TECHNICAL SPECIFICATION | |||||||||
|---|---|---|---|---|---|---|---|---|---|
|
Device type
|
AP-600 Automated Perimeter
|
||||||||
|
Maximum temporal range (degrees)
|
90
|
||||||||
|
Stimulus duration
|
200 ms/ 500 ms or 0.1-9.9s
|
||||||||
|
Visual field testing distance
|
30 cm
|
||||||||
|
Background illumination
|
31.5 ASB White/ 10 ASB White/ 31.5 ASB Yellow
|
||||||||
|
Stimulus size
|
Goldmann I II III IV V
|
||||||||
|
Stimulus color
|
White/ Green/ Red/ Blue
|
||||||||
|
Stimulus presentations
|
White-on-White/ Red-on-White/ Green-on-White / Blue-on-White/ Blue-on-Yellow (SWAP)
|
||||||||
|
Test Strategies – Threshold TIA-Superfast, TIA-Fast, TIA-Standard, TIA-SWAP, Full Threshold, Fast Threshold, Foveal Threshold |
Test Strategies – Suprathreshold Two Zone, Three Zone, Quantify Defect Test Modes Age Corrected, Threshold Related, Single Intensity |
||||||||
|
Test Fields – Threshold Central 24-2, Central 24-2C, Central 10-2, Central 30-2, |
Test Fields – Suprathreshold Central 40 Point, Central 64 Point, Central 76 Point, Central 80 Point, |
||||||||
|
Fixation Control
|
|
||||||||
|
Software features
|
|
||||||||
|
Display |
17” HD Capacitive Touch Screen diagonal
|
||||||||
|
Keyboard/ Mouse support
|
Yes
|
||||||||
|
Networking
|
LAN and Wireless
|
||||||||
|
Chinrest
|
Automated – up, down, left, right movement
|
||||||||
|
Height
|
633 mm
|
||||||||
|
Width
|
566 mm
|
||||||||
|
Depth
|
396 mm
|
||||||||
|
Weight
|
25 kg
|
||||||||

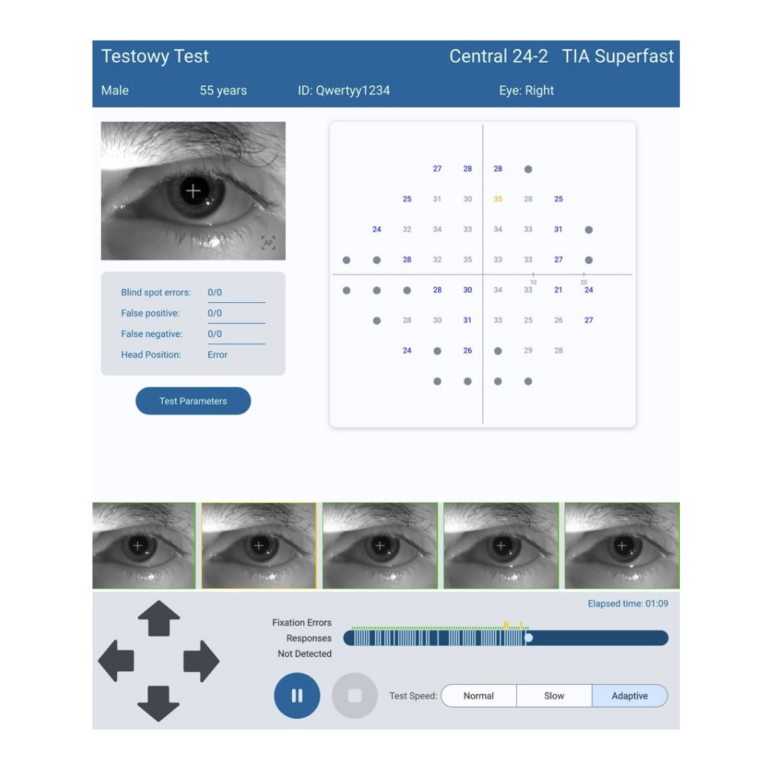

Advanced Eye Tracking
- With each stimulus presentation eye image is captured and presented above progress bar
- Operator can scroll back fixation history during examination of the patient
- Eye image is stored, and entire examination process can be reviewed during examination or later to verify patient fixation throughout entire test
- Algorithm verifies patient fixation during the test and presents the information on progress bar

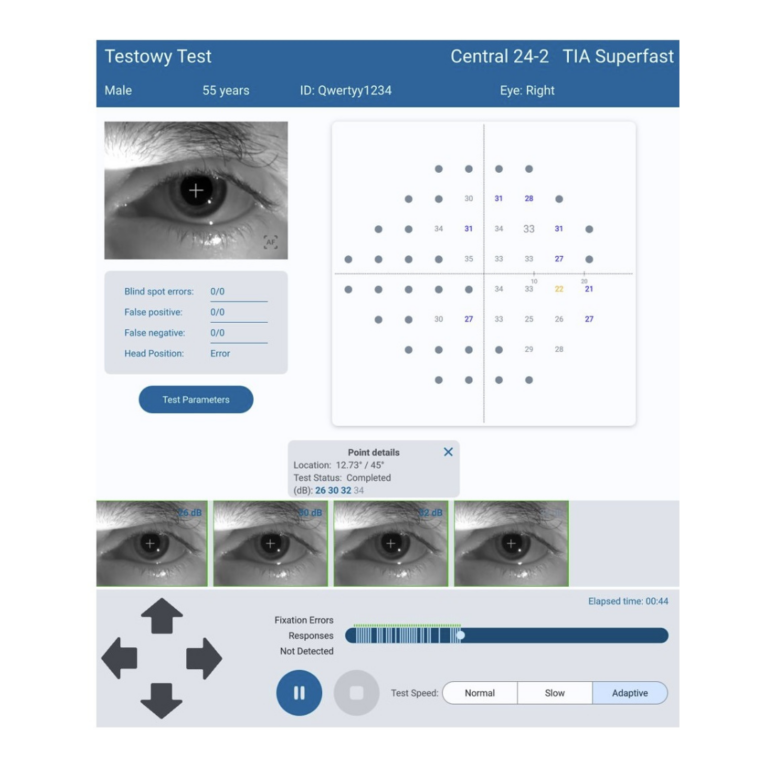

EyeSnap
- With single tap on one of test point operator can display location test history for each stimuli intensity used with
- information about fixation status
- patient response/lack of response to stimuli
- Eye snapshots are colour coded to inform operator about patient fixation for particular stimuli presentation

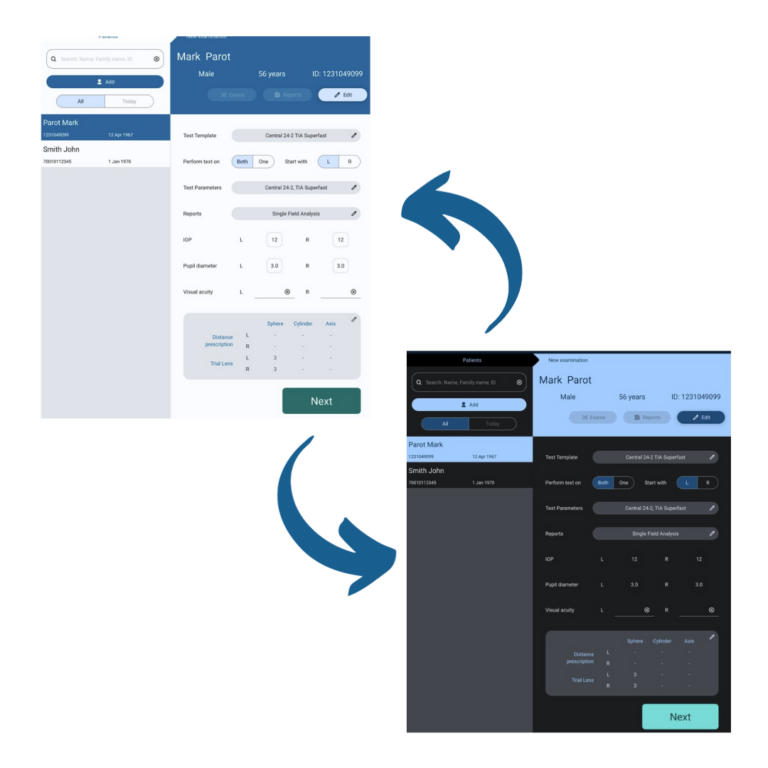

Dual colour scheme UI
- Operator may select between “day” and “night” colour schemes
- Display brightness in both modes can be adjusted using brightness icon of the system function bar

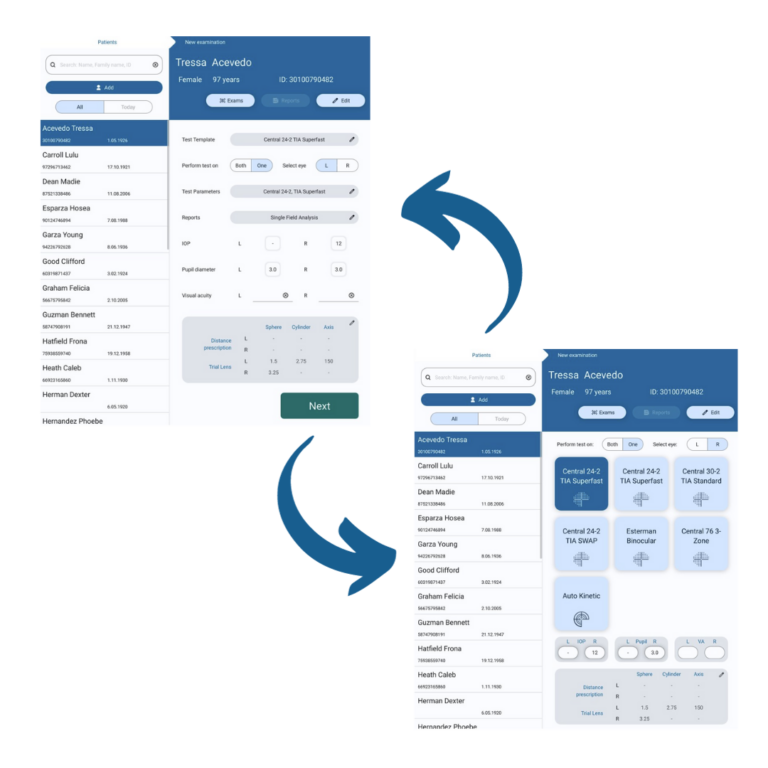

Standard and Simple UI configuration
- In Standard configuration operator may freely modify test parameters
- In Simple configuration operator may select only tests with predefined parameters, maximum 9 tests can be configured
