PLM-8000
Auto Lensmeter
· Hartmann Wavefront Sensor
· UV/Blue Light Transmittance Measurement
· Automatic Lens Detection mode
· Wi-Fi-based wireless network
· UV/Blue Light Transmittance Measurement
· Automatic Lens Detection mode
· Wi-Fi-based wireless network
Files to download
Product Description
 |
HWFS Wavefront Measurement Technology
Adopts HWFS wavefront measurement technology and an algorithm to compensate for light loss, minimizing measurement errors and providing more accurate values.
|
 |

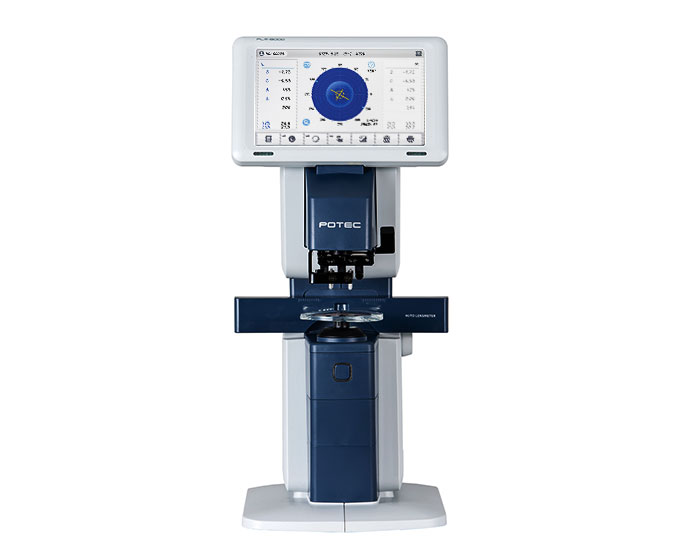

7-Inch LCD Touchscreen
Uses a familiar touch panel and wide screen. A graphical interface displays lens shape and tilt in real time, making lens measurement easy when a lens is placed.
|
 |
PD and Eyewire Height Measurement
By aligning marked points using direction icons, measures the distance between left and right lens centers and the eyewire height.
|
 |
Multi-language Support
Supports six languages: English, Japanese, Chinese, French, Portuguese, and Arabic.
|
 |
UV / Blue Light Transmittance Measurement
• Measures UV transmittance of general lenses or sunglasses and displays the result in the UI. Also measures blue light transmittance of lenses that block digital blue light.
• Provides two display modes. UV and blue light data are shown simultaneously in graph form for easy understanding.
|
 |
Green Measurement Light Source
Uses a green light source close to the international standard e-line wavelength to minimize measurement error.
|
 |
Automatic Lens Type Detection
Automatically detects the lens type and switches to the appropriate mode for immediate measurement. Supports measurement of bifocal and trifocal lenses in general lens mode.
|
 |

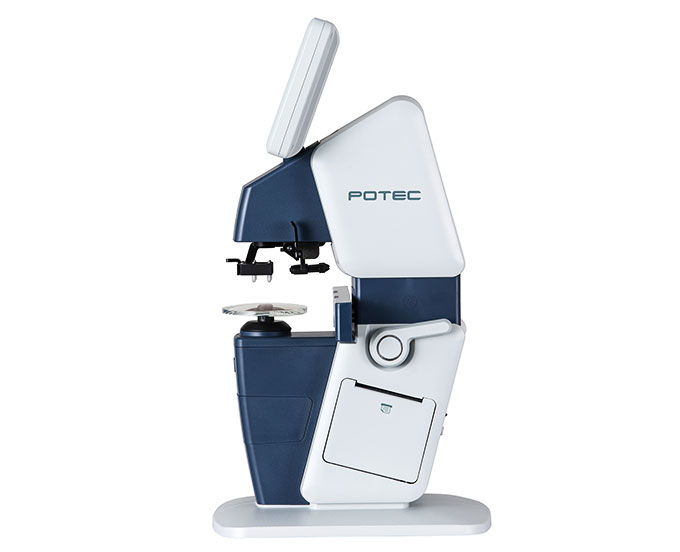

Tiltable LCD
Wide tilting range allows for clear viewing whether sitting or standing.
|
 |
Auto-Cutting Printer
Equipped with a low-noise, high-speed auto-cutting printer to print measured data on the spot for quick presentation to customers.
|
Specifications
|
Measurement |
||
|---|---|---|
| Measurement
range |
Sphere Power(SPH) | -25 ~ ±25D(0.01/0.06/0.12/0.25D Steps) |
| Cylinder Power(CYL) | 0 ~ ±10D(0.01/0.06/0.12/0.25D Steps) | |
| Axis(AX) | 0 ~ 180° (1° Steps) | |
| ADD | 0 ~ 10D(0.01/0.06/0.12/0.25D Steps) | |
| Prism | 0 ~ 20△(0.01/0.06/0.12/0.25△ Steps) | |
| Measurement
range |
Cylinder Mode | -, +, ± |
| Prism Mode | Rectangular / Polar | |
| LED wave | 525nm(Green) | |
| Wave | e-Line, d-Line | |
| UV, BLUE Mode | 0~100% | |
| Interface | RS-232C / WiFi(Option) | |
| Interpupillary Distance(PD)
model: PLM-8000PD |
0~90mm (0.5mm Steps) | |
| Etc | Marking System | Pen type |
| Display | 7inch TFT-LCD(800x480pixel) Touch Panel | |
| Internal Printer | Themal line printer with Auto-Cutter function | |
| Power Supply | AC100-240V~,50/60Hz | |
| Power Consumption | 15~53VA | |
| Size | Approx.198(W)x245(D)x420(H)mm | |
| Weight | Approx.5Kg | |
