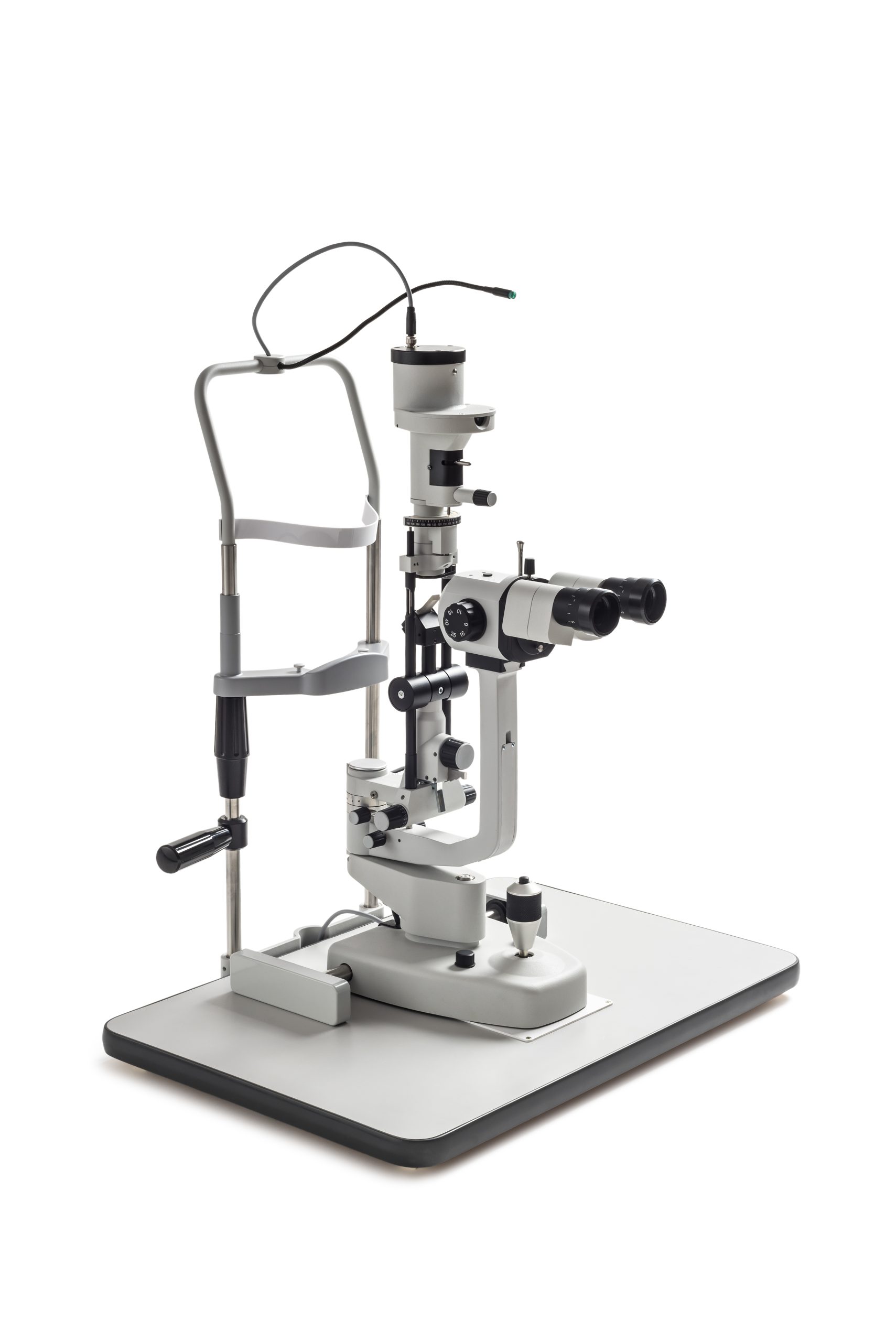

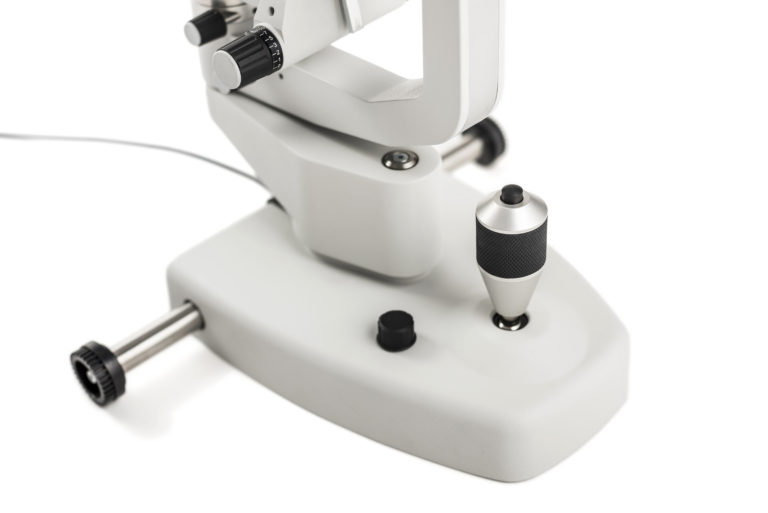

Slit, Projection system, and Base general data SL-100 Minimum slit opening: 0 mm Slit maximum length: 14 mm Continuously adjustable slit length: 1.8 - 14 mm continuously variable Slit projection scale: 1.2 x Slit aperture diaphragms: 0.2/ 1/ 3/ 5.5/ 9/ 14 mm Filters: clear, blue, natural density, yellow, diffuser, red-free Slit rotation: 0° - 180° with a reference scale Vertical slit tilting angles: 0°/ 5°/ 10°/ 15°/ 20° Working distance - eye of patient/ prism surface :75 mm Fixation lamp: green lamp Chin-rest height adjustment: 59 mm Base travel: 103 mm X–axis, 100 mm Y–axis, 35 mm Z–axis

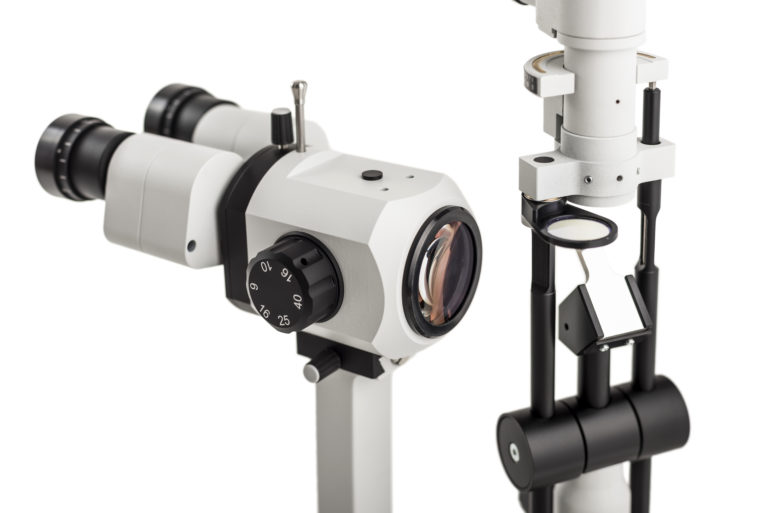

Stereoscopic Microscope
Microscope type: Convergent binocular optical microscope @ 8° Magnification power selection system: Five position rotating drum Eyepiece: 12.5 x Magnifying powers: 6x 10x 16x 25x 40x Field of view: [mm] 36 22 14 9 5.6 Distance between pupils: 48.5 – 80 mm Objective lens working distance: 111 mm Objective lens working angle: 12° Eyepiece diopter adjustment: from -5D to +5D
